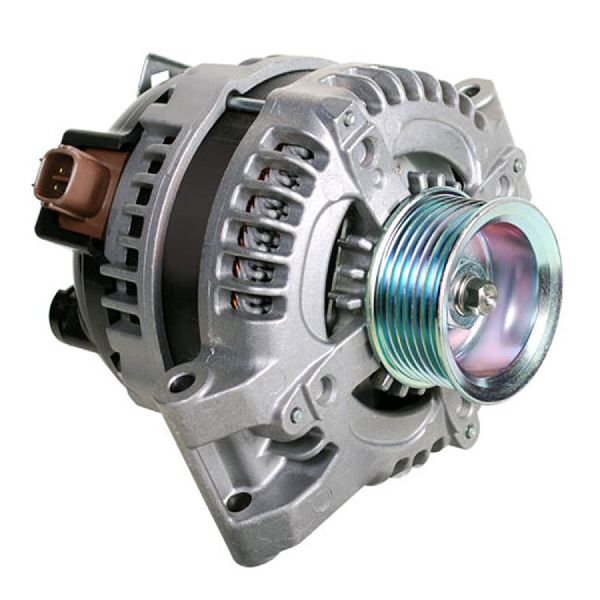

The alternator resembles a small cylindrical generator, usually bolted to the engine. It works alongside the battery and voltage regulator as one of the three main components of a vehicle's electrical charging system. The alternator generates electricity stored in the vehicle’s battery by converting mechanical energy from a drive or serpentine belt (powered by the engine's crankshaft pulley) into electrical energy.
---
ALTERNATOR COMPONENTS
1. Pulley
Located on the alternator's exterior, the pulley is driven by the engine's drive or serpentine belt, which spins the alternator. This mechanical motion provides the energy required to generate electricity.
2. Rotor
The rotor, a cylindrical component attached to a metal shaft, spins when driven by the alternator’s belt. Its outer surface features magnetic triangles (triangle finger poles) with alternating north and south poles. When energized, the rotor becomes an electromagnet.
3. Stator
The stator surrounds the spinning rotor and contains three copper wire windings. As the rotor spins, it induces alternating current (AC) within the stator windings.
4. Voltage Regulator
The voltage regulator ensures the alternator produces a controlled electrical output. By moderating the electricity supplied to the rotor, it prevents overcharging, which could damage the battery and electronic components.
5. Rectifier
The rectifier converts the alternating current (AC) produced by the stator into direct current (DC), which the car battery can use. Using diodes, the rectifier restricts the flow of electricity to a single direction, ensuring compatibility with the battery's requirements.
---
HOW DOES AN ALTERNATOR WORK?
While the car battery starts the engine, the alternator powers most of the vehicle's electronic components once the engine is running, such as:
Headlights
Power windows
Electric steering
Dashboard instruments
Heated seats
Radio
The alternator also recharges the battery during operation. It operates by converting mechanical energy into electrical energy:
1. The engine drives a belt connected to the alternator's pulley.
2. The pulley rotates the rotor shaft, spinning magnets inside the stator’s coil.
3. This movement generates AC, which is converted into DC by the rectifier to activate the vehicle's systems.
While alternators are designed to last the vehicle's lifetime, factors like wear and tear, heat damage, water exposure, or faulty wiring may lead to premature failure.
---
WARNING SIGNS OF A FAULTY ALTERNATOR
If the alternator fails, your car won't stay on for long or may not start at all. Common warning signs include:
Dim or overly bright lights Dead battery Slow or malfunctioning accessories Difficulty starting or frequent stalling Growling or whining noises Burning smell from rubber or wires Battery warning light illuminated on the dashboardThese symptoms may also indicate other electrical issues, so a thorough diagnosis is essential.
